R32 Track Combo Catch Can

Installation Guide

The R32 Track Catch Can includes the following parts:

-Catch can

-Bracket

-(2) m6 flange bolts

-(1) m6 flange nut

To install catch can, the factory coolant overflow reservoir and factory battery tray should be removed (Demo car had holes cut for piping, please ignore).

Install short end of L bracket onto factory coolant reservoir stud and attach with M6 flange nut.

Front tab of catch can should align with factory m6 bolt hole behind headlight, it will sit alongside the steering cooler hard line bracket.

L bracket will bolt down to the rear tab of catch can and can be adjusted left/right and up/down so that the catch can sits perfectly aligned in the bay.

Front bracket can be hard to access, a small piece of painters tape can help ‘aim’ the bolt for ease of installation.

Connect oem coolant reservoir return line to the fitting on bottom of catch can , trim excess if needed.

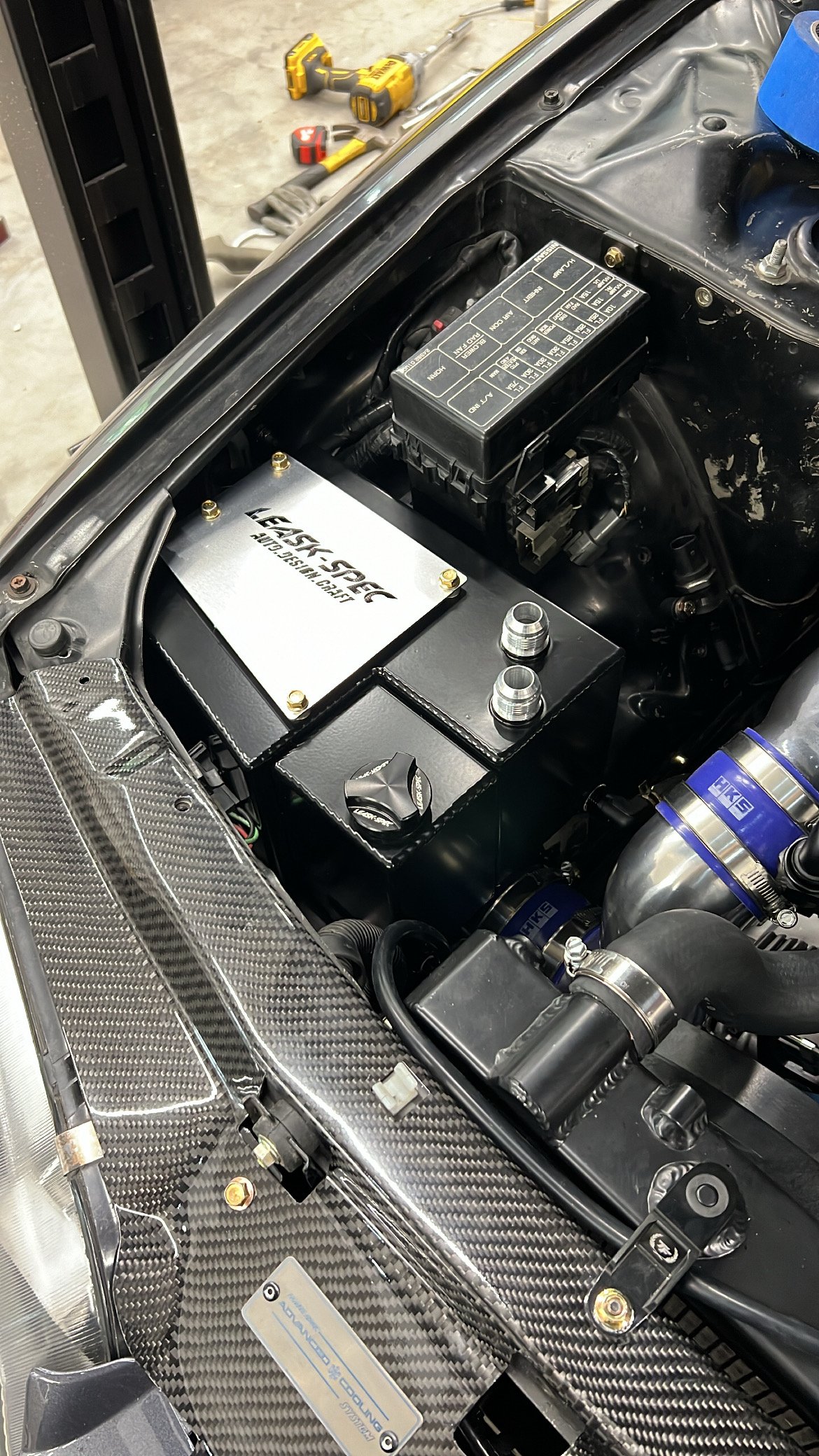

The finished product!

If you also purchased the oil drawback kit for this catch can, please refer to the install guide for the drawback kit (coming soon). As always, if you have any questions regarding this install, please don’t hesitate to reach out to us at leaskspec@gmail.com or on social media!
